LG installs its first LED cinema screen

16 Jun 2020 | Rasmus Larsen |

Following in the footsteps of Samsung, LG is getting into the cinema market. Not with projectors, but rather gigantic modular LED screens.

LED cinema screens

Samsung installed the "world's first" LED cinema screen in July 2017 and Sony has been exploring the concept for years. LG has now installed its first LED cinema screen. It was installed in Taiwan in partnership with Taiwan's Showtime Cinemas and Dolby. The installation includes a full Dolby Atmos system.

LG LED Cinema

By replacing the conventional projector with huge, modular LED screens, LG says that the projector room can be repurposed as seating space. The company claims that its LED cinema screens have 100,000 hours of lifetime (LED brightness half-time).

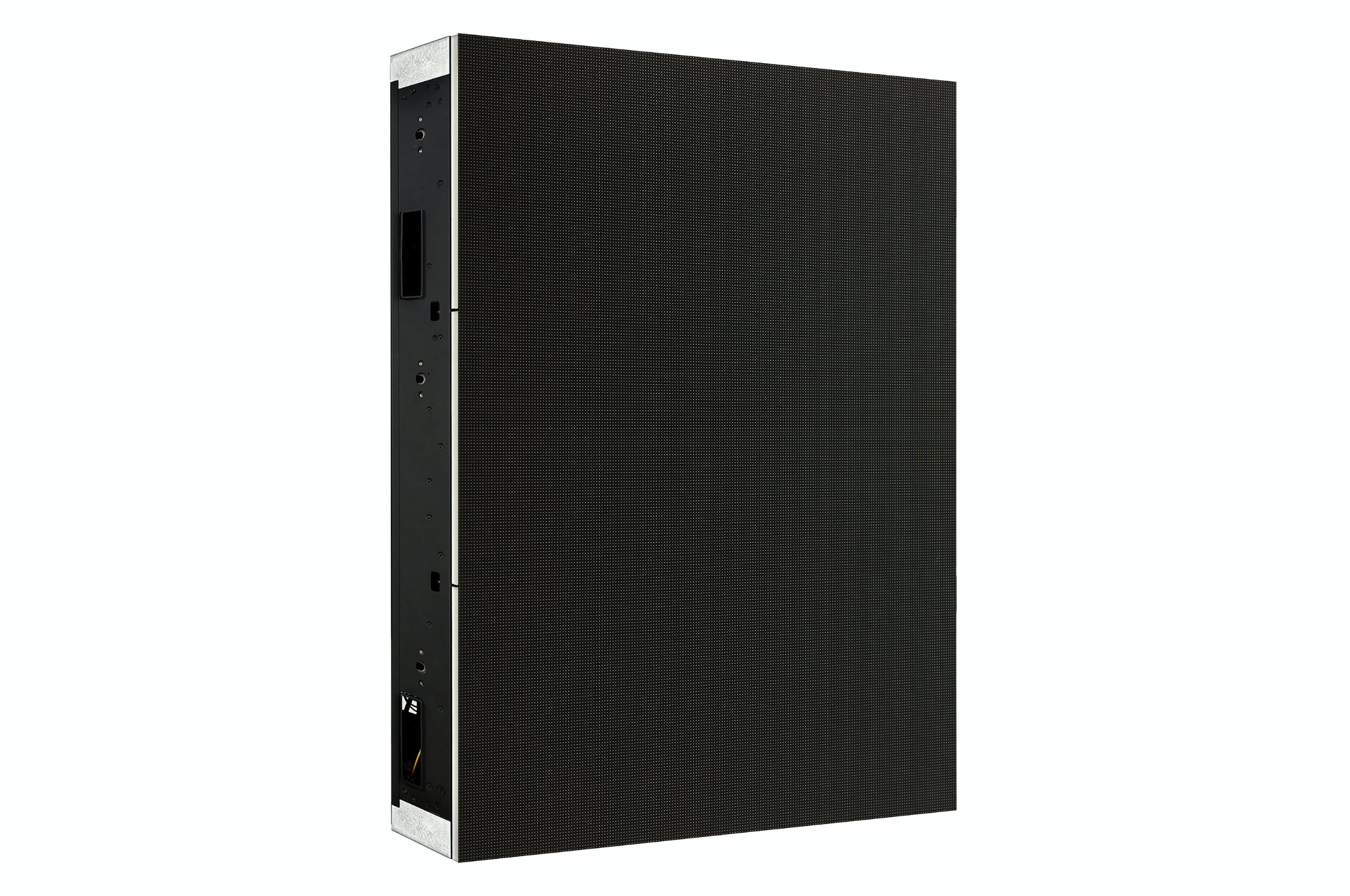

LG LED Cinema module

- "We are excited about our collaboration with LG Electronics to bring our combined expertise to movie goers in Taiwan," said Jed Harmsen, CPof Cinema & Content Solutions at Dolby Labs. "With the lifelike images created by LG’s LED Cinema Display and the immersive audio delivered by Dolby Atmos, moviegoers will be able to enjoy an elevated and thoroughly captivating cinematic experience." LED cinema screens can get much brighter than projectors and have far superior contrast to let cinemagoers experience HDR for the first time in cinema. Like OLED, LEDs are self-emitting meaning that each pixel emits its own light for pixel-level luminance and color control. The price of the system was not disclosed.

LG LED Cinema - technical specifications

Optical Parameter Pitch 3.3 mm LED Type SMD Pixels per LED Module 8,640 Aspect Ratio 64 : 90 (per Cabinet) Resolution 192 × 270 (per Cabinet) Pixels 51,840 (per Cabinet) Pixel Density 90,000 (per SQM) Visual Viewing Angle (Horizontal/Vertical) 120º, 120º Color Depth 12 Bit (DCI-compliant) Chromaticity Uniformity In case of White : Within ±0.015 x, ±0.015 y Color Temperature (White) (x. y) = (0.314, 0.351) / DCI-P3 Theater Color Temperature (R, G, B) DCI-P3 theater R: (x. y) = (0.68, 0.32) G: (x. y) = (0.265, 0.690) B: (x. y) = (0.15, 0.06) Contrast Ratio 4000 : 1 (Minimum) Brightness(After Calibration) 48 nit (DCI-compliant) Color Gamut DCI - P3 (DCI-compliant) Video Frame Rate 24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 Hz, 60 Hz Lifetime 100,000 Hours (LED to Half Brightness) Operation Hours 16 Hours per Day / 7 Days per Week Physical / Electrical Parameters Modules (per Cabinet) 6 (2 × 3) Dimension (LDM) 320 mm × 300 mm Dimension (per Cabinet) 640 mm × 900 mm × 124 mm (Including Handle) Dimension (4K, Total) 14,080 mm × 7,200 mm (101 sqm) Dimension (4K, Active Area) 13,653 mm × 7,200 mm (98 sqm) Weight (per Cabinet) 15 kg Weight (4K, Total) 2,640 kg Material of Cabinet Body Aluminum Heat Generation (per Cabinet) 221 BTU (Max.) / 73 BTU (Typ.) Serviceability Rear only Power Supply AC100-240 V ~, 50/60 Hz Power Type Built-in Power Power Consumption (Max, per Cabinet) 90 watt (Main) / 52 watt (Secondary) Power Consumption (Max, 4K) 9,260 W Certification DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH Supported Media Server Dolby IMS3000 Interface RJ45 Operation Temperature 0°C to 40°C Operation Humidity 10% to 80% Storage Temperature -20°C to 60°C (-4°F to 140°F) Storage Humidity 5% to 85% LG LED Cinema module
